Here is a great video that highlights 10 common mistakes DIYers often make when working with circuit breaker boxes and offers practical solutions to address each problem, ensuring better safety, compliance, and efficiency. I've summarized the video below.

Circuit Breaker Labels

📝 Illegible Labels:

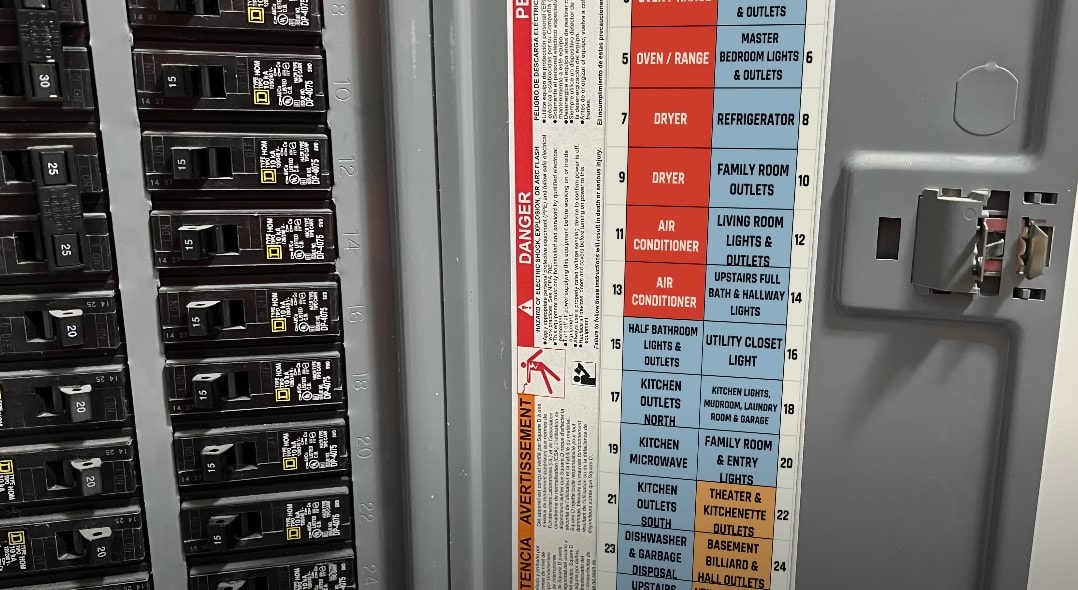

One of the most common issues is failing to properly label circuit breakers. Over time, labels can fade, peel, or become outdated when circuits are added or modified. Without clear labels, it becomes difficult to identify which breaker corresponds to which circuit, leading to confusion in the event of troubleshooting or repairs. Proper labeling not only helps with quick identification but also prevents accidental power shutdowns to essential devices or systems.

Fix: Use permanent markers or dedicated label makers to create legible and durable labels. Ensure labels are updated whenever changes are made to the panel.

Circuit Breakers

⚡ Overloaded Panels:

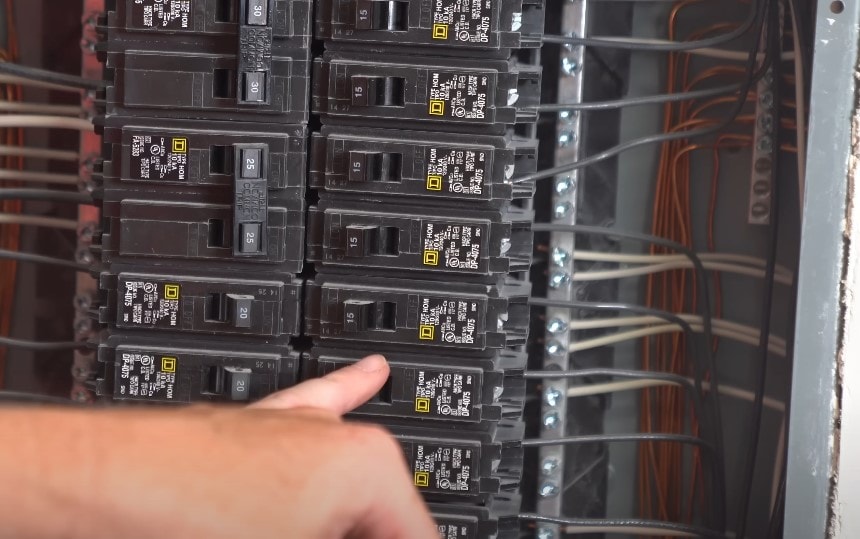

Circuit breaker panels are designed to handle a specific maximum load. A common mistake is exceeding the panel’s capacity, which can happen when additional circuits or appliances are added without considering the overall amperage. Running a panel at more than 80% of its capacity consistently can lead to overheating and potential electrical fires.

Fix: Calculate your panel’s total amperage capacity and ensure your combined circuits don’t exceed 80% of this value. If your demand exceeds this limit, consider upgrading your panel or distributing the load through sub-panels.

Wire Protectors

🔧 Wire Protection:

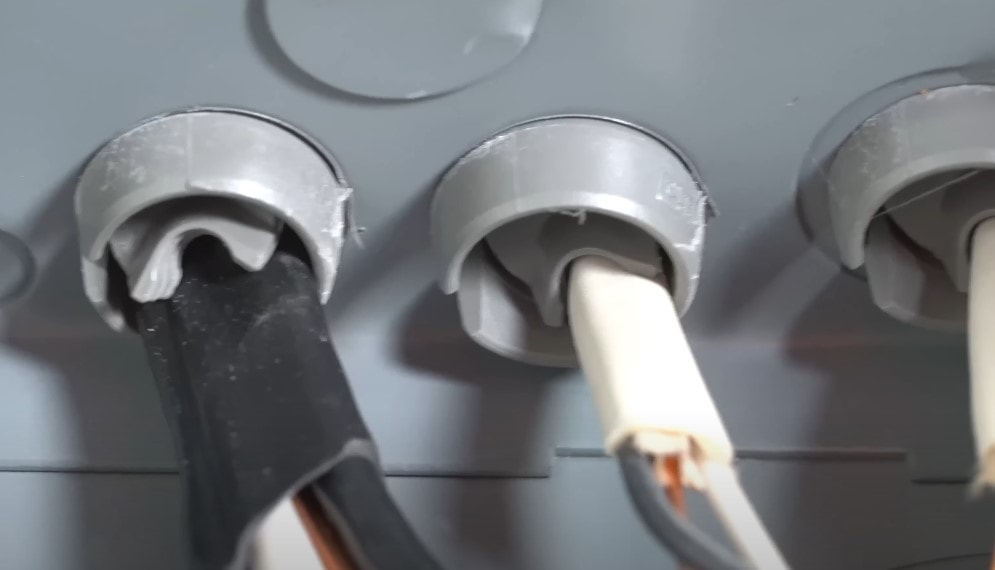

Wires entering the breaker box often pass through metal edges or knockouts, which can be sharp. Without proper protection, these wires can become damaged over time due to friction, leading to electrical shorts or fires. This issue is especially common when installing new circuits.

Fix: Always use plastic or metal bushings (connectors) when running wires into the breaker panel to protect them from sharp edges. Additionally, check that wires aren’t bent or stressed inside the panel.

Wire Gauge

📏 Wire Gauge Mismatch:
Another common error is using the wrong gauge of wire for a circuit. Each wire size is rated for a specific amount of current, and using a wire that is too thin for the breaker can cause the wire to overheat and potentially catch fire. This mistake is particularly risky in high-load circuits like those powering appliances or HVAC systems.

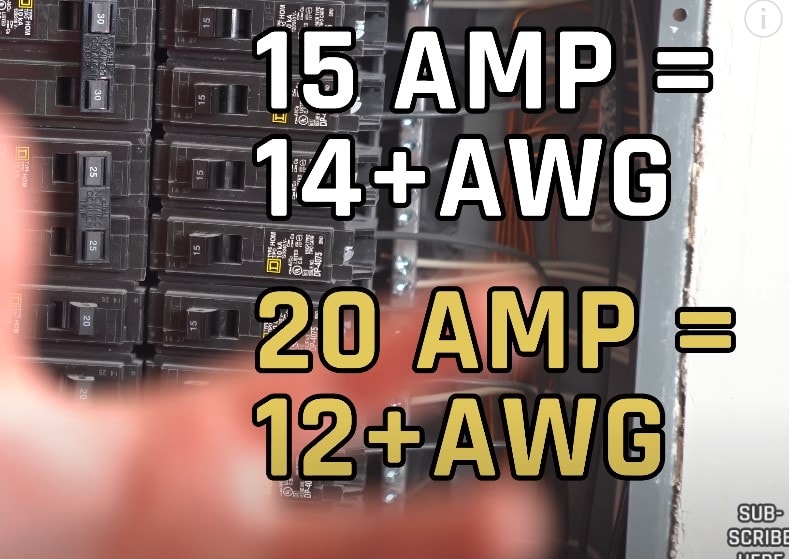

Fix: Always match the wire gauge to the amperage of the circuit breaker. For example, a 15-amp breaker should use a 14-gauge wire, while a 20-amp breaker requires a 12-gauge wire. Refer to wiring codes or consult an electrician if unsure.

Ground Wires

⚠️ Improper Grounding:
Grounding is essential for protecting both people and equipment from electrical faults. A poorly grounded system can lead to dangerous conditions where appliances or even the breaker panel itself can become energized, causing shocks or fires. This mistake is especially common in older homes or during DIY panel upgrades where grounding standards may be overlooked.

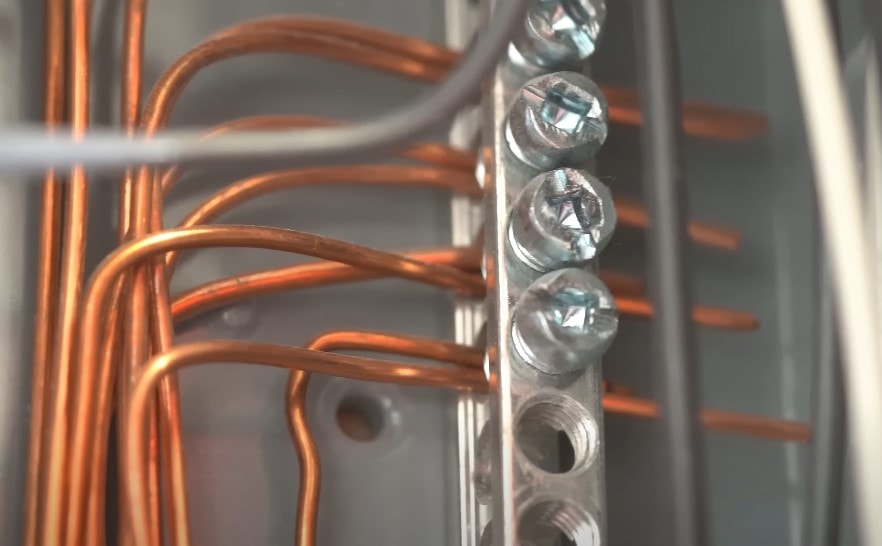

Fix: Ensure that all circuits, outlets, and the breaker panel itself are properly grounded according to electrical codes. This includes using grounding wires, connecting them to the ground bus bar, and ensuring they have a clear path to earth through a grounding rod or system.

Double Tapping Wires

⚡ Double Tapping:

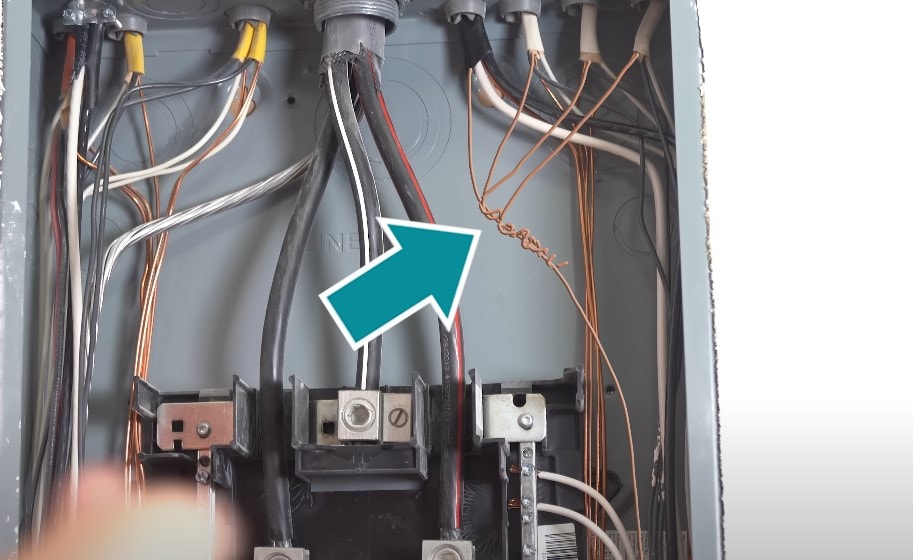

Double tapping occurs when two wires are connected to a single breaker terminal. Some breakers are designed to handle this, but most are not, and improper double tapping can cause poor connections, overheating, and even arcing. It’s a common mistake when homeowners add additional circuits without upgrading the panel.

Fix: Check your breaker’s specifications to see if it’s rated for double tapping. If not, use a pigtail (where multiple wires are spliced together and connected to a single breaker terminal) or add additional breakers or a sub-panel if necessary.

Missing Filler Plate

🔒 Missing Filler Plates:
When circuits are removed or when panels are initially installed, open slots may be left in the breaker panel. These gaps expose the live electrical components inside, increasing the risk of accidental contact, dust buildup, or moisture exposure, all of which can cause serious hazards.

Fix: Install filler plates in any open slots in the breaker panel to prevent accidental contact and keep the internal components safe. These plates are inexpensive and easy to install, yet they provide a significant safety improvement.

Watch the full video here:
